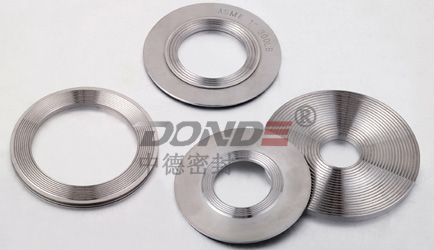

The Main Style of Serrated Metal Gasket：
|
Basic Type Serrated Metal Gasket |
ZD-G1901 |
|
Serrated Metal Gasket With Inner Eyelet |
ZD-G1902 |
|
Serrated Metal Gasket With Outer Eyelet |
ZD-G1903 |
|
Serrated Metal Gasket With Inner And Outer Eyelet |
ZD-G1904 |
Main Specification：
|
Temperature |
650℃ |
|
Pressure |
6.4-16.0MPa |
|
Minimum pretightening sealing load |
y=70MPa |
|
Gasket factor |
m=4.25 |
Optional materials:
|
Metallic Materials |
Code of Germany |
Hardness/HB |
Temperature/℃ |
Density g/cm3 |
Thickness/mm |
|
Carbon Steel |
1.1003/1.0038 |
90~120 |
-60~500 |
7.85 |
0.5mm 1.0mm,2.0mm 3.0mm |
|
SS304,SS304L |
1.4301/1.4306 |
30~180 |
-250~550 |
7.93 |
|
|
SS316,SS316L |
1.4401/1,4404 |
30~180 |
-250~550 |
7.98 |
Surface Materials:
Flexible Graphite,PTFE,Asbestos sheet,Non-asbestos sheet, etc.
Warning: Gasket materials should never be recommended when both the temperature and the pressure are at the maximums listed. Properties and applications shown are typical. No application should be undertaken by anyone without independent study and evaluation for suitability. Never use more than one gasket in one flange joint, and never reuse a gasket. Improper use or gasket selection could cause property damage and/or serious personal injury. The data reported is a compilation of field testing, field service reports and/or in-house testing. While the utmost care has gone into publishing the information contained herein, we assume no responsibility for errors. The information and specifications contained in this website are subject to change without notice. This revision cancels and obsoletes all previous editions.
