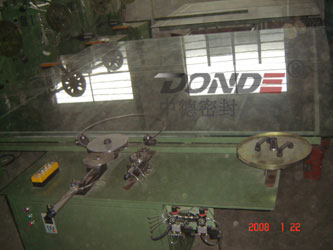

Large Winder for SWG (Horizontal Style)
Item No:ZD-M2500
Description:It
is a horizontal semi-automatic winding machine, which is
designed to produce spiral wound gasket with inner ring and
without inner ring from 300mm to 2500mm/3200mm. welding
point quantity and position is set simply in advance.
Options:
1.V or W profile, thk 3.2mm 4.5mm 6.4mm 7.2mm
2.Flat metal strip feeder
3.Maximum size 2500mm or 3200mm
Technical Parameter:
|
Gasket Size
|
with inner ring / without inner ring
|
with inner ring / without inner ring
|
|
Nominal Thickness
|
4.5mm
|
4.5mm
|
|
Maximum Outer Diameter
|
2500mm
|
2500mm
|
|
Minimum Inner Diameter
|
300mm
|
300mm
|
|
Linear Speed
|
0 – 800mm/s
|
0-800mm/s
|
|
Total Power
|
2.2 KW
|
8KW
|
|
Motor Power
|
0.75 KW
|
0.75KW
|
|
Welding Power
|
/
|
6KW
|
|
Voltage
|
380V/220V
|
380V/220V
|
|
Air Pressure
|
6-8 BAR
|
6-8BAR
|
|
Variable Frequency Controller
|
2.2G
|
2.2G
|
|
PLC
|
/
|
XINJIE
|
|
Dimension
|
3400*2600*980mm
|
3400*2600*980mm
|
|
Weight
|
500 KG
|
550 KG
|
